1. What Is SHR:
SHR technology employs low fluence, high average power, with super fast pulses(up to 10 Hz, 10 times per second), instead of high peak energy and slow pulses. SHR does not solely target melanin as the traditional IPL principle. Instead, SHR focuses on progressively raising the temperature of the sub-dermal layer of the skin in a step-wise fashion. SHR raises and maintains the temperature, trapping the heat for prolonged time (up to 90 seconds)and thereby deactivating the surrounding biological markers (e.g., stem cells and enzymes) for permanent hair reduction.

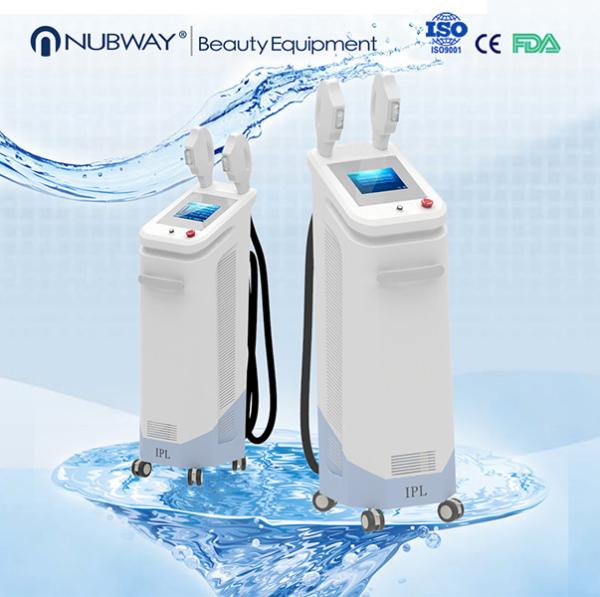

2. Why Choose Our SHR IPL Machine:
1. Specific wavelength handlepiece ,no use filter , more accurate energy output , more durable and more professional .
2 Durable&powerful Xenon lamp
NBW-SHR212 adopts UK Xenon tube, which ensures its long lifespan. The lamp’s warranty
is 300000 shots, maximum lifespan is up to 500000 shots.
Customize xenon lamp available if you give the 3 parameter above .
3. Qualified details :
In case of the handlepiece wrong connection or water leakage cause the handlepiece damage , All program controlled Automatic identification integrated socket , Auto water lock and toppest level glided copper-beryllium interface . Machine works stable even meet wrong operation .
4. Max 3000w big power to ensure this shr machine could output the same energy as ipl do , also has the function to adjust the frequency .
Double power supply , Exposed big capacitance may cause serious danger because it reserve the energy even the machine closed . We use enclosed 4*12000μFcapacitance ensure the powerful energy supply also in case of the risk .
5.Too much heat will stop the IPL SHR machine working , Combine semiconductor + water + wind top level cooling system continues using more then 24 hours .
Semiconductor : Use double-deck thermoelectric cooler, providing -4°C protects epidermis while hair follicle is acted Unlike conventional single cooler
Water cooling : 60m high pressure vane pump + 10L big water tank , Better and stable water circulation rather then magnitic .
Wind cooling: 4 DC 12v power fan with copper condensor rather 4 times better cooling then aluminum
6. Humanized easy work system
Water flow , working temperature real-time auto detection and safe working alert .
0~10hz with 16*50 big spot size , don't suffer the long times treatment any more .
3. SHR Technical Specification:
|
Cooling temperature |
-4°c~0°c |
|
Spectrum range |
SSR:560-1200nm, SHR: 640-1200 nm |
|
Power supply |
220v/50Hz or 110v/60Hz |
|
Input power |
3000W |
|
Light source
|
Intense pulsed light
|
|
Energy density |
10~50J/cm2 ;10~36J/cm2 |
|
Pulse method
|
Intense pulsed technology (adjustable)
|
|
Repeat frequency
|
3,4,5,6,10Hz
|
|
Continue working time
|
1-60s
|
|
Spot size
|
18*34mm, 16*57mm |
|
Cooling system
|
Water , air and semiconductor cooling
|
4. Before and after picture:
5. Scope of Treatment:
(1). Deeply wrinkle removal and face lifting: Integrating with the IPL and RF technology, deeply remove the wrinkle and lift face
(2). Unwanted hair removal: Take advantage of intensive pulsed light and RF energy (could act on skin below 6mm), act on the pore directly to remove the thick dark hair, and lighten tiny hai
(3). Dermic spots, pigment and red blood streak removal
(4). Treatment for acne: Reducing the activities of sebaceous gland
6. Best Service:
We supply 18 Months warranty:
1. The machine will be tested 3 times before delivery, so it seldom has problems.
2. If the problem actually happens during the warranty, we will help to repair and all
the accessories needed will be sent for free (also the shipping cost is paid by us).
3. If out of warranty time, we will still help to solve the problems,the repair is free and you need to pay for the cost and shipping cost of the accessories.
4. We have 4 engineers who are very professional and can speak English well.They will help you timely.
5. We also offer ODM&OEM service, clients can customize their own unique products, adding logo, change language and even appearance are all no problem.
7. Factory:
Beijing Nubway S & T Co., Ltd.
we have in this business for more than 10 years. We have the most professional factory, best engineer and technical team, R &D team and service team. We will always supply you the best quality machine, best service with the most reasonable price. This is the basis for our company to provide the OEM or ODM service for our distributors.
For more information, pls contact us directly or visit our website:www.nubway.net
